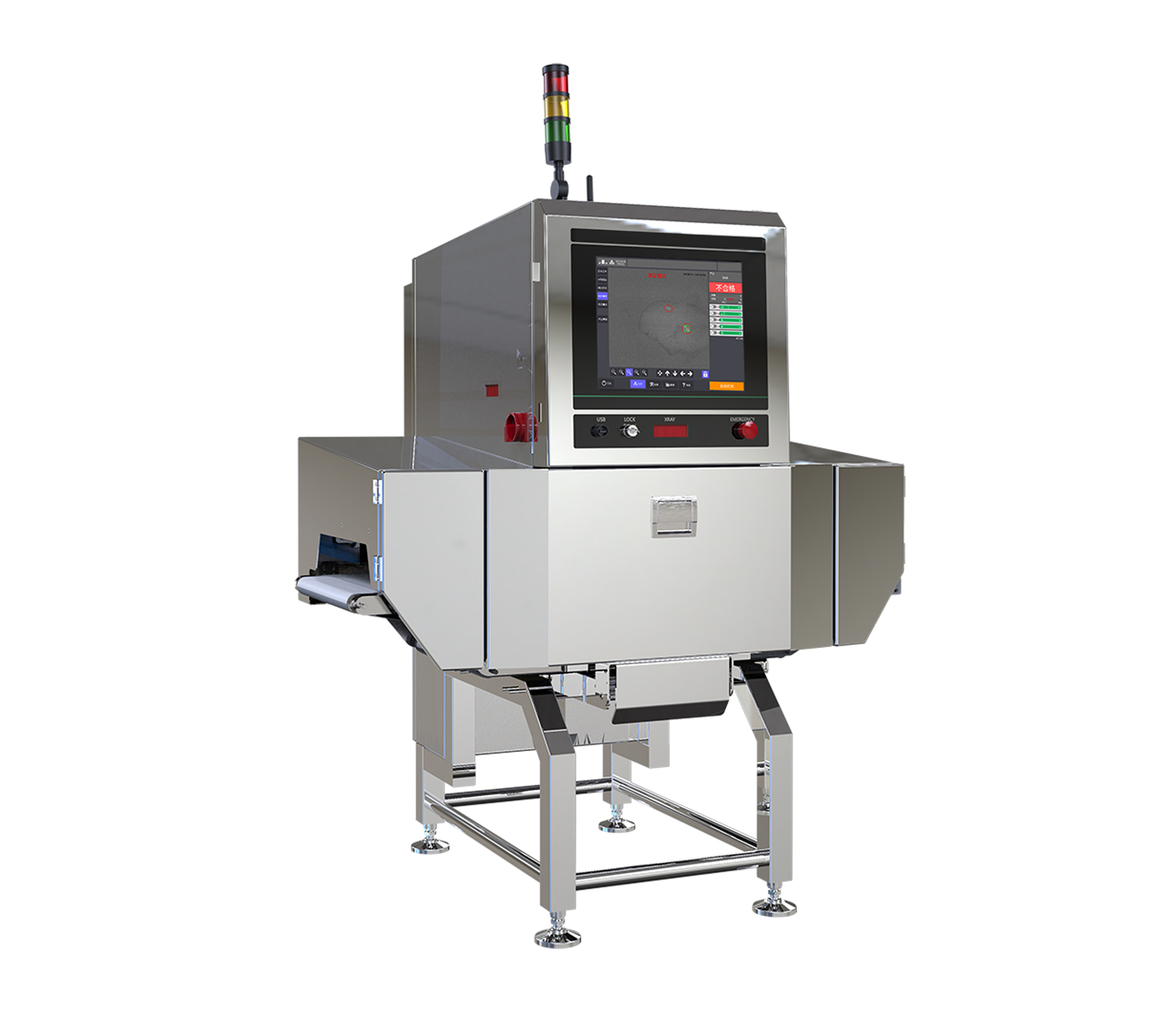

Desigco CLS-XRay-C4016-B is a advanced dual-energy X-ray inspection system
Desigco CLS-XRay-C4016-B is designed for superior foreign object detection and product composition analysis in food and pharmaceutical packaging.
Its high-resolution dual-energy detector enhances material discrimination, allowing it to effectively identify contaminants like metal, glass, bone, ceramic, and rubber, while also checking for missing components or mass defects.
Ideal for high-value production lines requiring detailed quality insights.
Advanced Dual-Energy Tech: Provides superior material discrimination to effectively identify a wider range of contaminants and product defects.
High-Resolution Clarity: Features a high-resolution detector for exceptional image quality, revealing tiny impurities.
Optimized for Product Integrity: Perfect for checking fill levels, missing items, and mass variation, beyond just foreign object detection.
Built for Harsh Environments: Constructed with 304 stainless steel and offers IP54/IP66 ratings for reliable operation in washdown areas.
User-Friendly Operation: Controlled via an intuitive interface (likely a touchscreen) and powerful Vixdetect software for easy setup and monitoring.
Compliance & Safety: Ensures radiation safety (≤1μSv/h) and helps producers meet strict global food safety regulations (HACCP, FDA, BRC, etc.).
Model
CLS-XRay-C4016-B
Item
Specifications and Configuration
Maximum Aperture Size
400mm(W)×160mm(H)
Emission Source
VJ 80KV/350W
Receiver
High-Resolution Dual-Energy Detector
Detection Accuracy
Depends on the specific product's content and characteristics
Belt Speed
10-50 meters/minute (Recommended 25-30 m/min for dual-energy machine)
Conveyor Height
Standard 800±50mm from floor
Conveying Direction
Facing the operation screen, product flow direction is from right to left
Conveying Weight
25kg
Software
Desigco X-Ray Inspection System
Alarm Method
Audio-visual alarm, alarm with stop
Power Supply
AC 220V Single Phase (with High-Precision Voltage Stabilizer)
Operating Environment
Inspection tunnel IP66, Other parts IP54 (Air conditioner excluded), Air conditioner equipped
Ambient Temp/Humidity
Temperature 0-40°C, Relative Humidity 30-85%, No condensation (Equipped with electronic dehumidifier)
