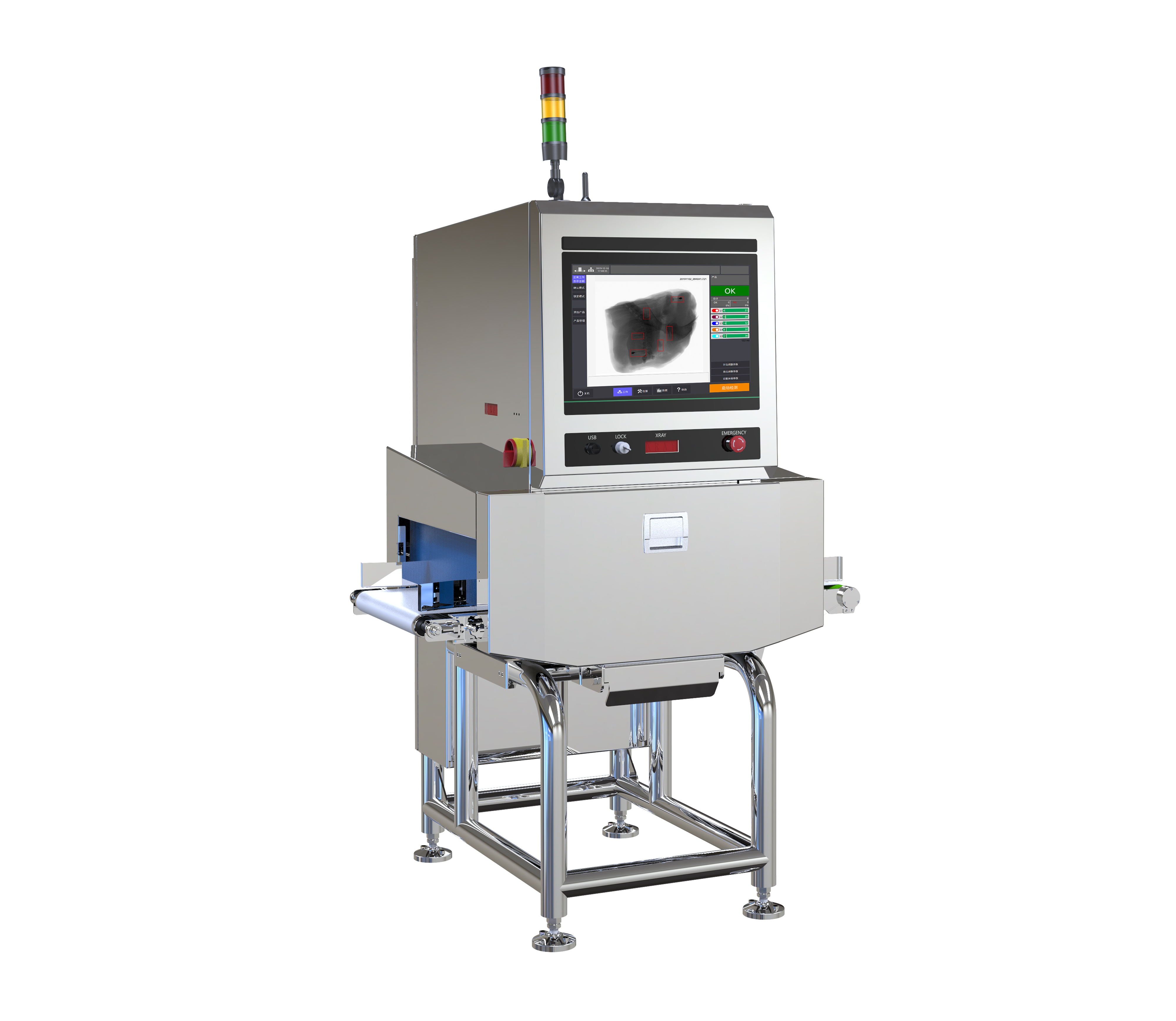

Desigco CLS-XRay-C4016-S is a compact and cost-effective single-energy X-ray inspection system
Desigco CLS-XRay-C4016-S is perfect for reliable foreign body detection in packaged goods.
It offers high-sensitivity inspection for metals, glass, stone, and dense plastics within a 400x160mm aperture, ensuring product safety for a wide range of applications.
Its robust IP55/IP66 construction makes it suitable for demanding production environments.
Cost-Effective Protection: Delivers essential, high-performance contaminant detection at an economical price point.
High Detection Sensitivity: Capable of finding very small foreign objects, including φ0.3mm metal and φ0.8mm ceramic.
Compact & Space-Saving: Its smaller aperture size is ideal for production lines with limited space.
Robust Industrial Design: Built with 304 stainless steel and high IP ratings for durability and easy cleaning.
Simple & Efficient Operation: Features a user-friendly interface and stable Linux OS for reliable, day-to-day use.
Ensures Product Safety: Helps protect your brand reputation by preventing contaminated products from reaching consumers.
Model
CLS-XRay-C4016-S
Aperture Size
400×160mm
Conveyor Belt Speed
10-60 meters/minute
Conveyor Height
800±50mm
Product Flow Direction
From left to right
Max. Product Weight
10kg Max.
X-ray Power
210W
X-ray Leakage
Less than 1 μSv/h
Detector Size
0.4mm High Sensitivity Receiver
Operating System
Linux
HMI(Human-Machine Int.)
17-inch Industrial Touch Screen
Software
Desigco X-Ray Inspection System
Radiation Protection
≤1μSv/h, Built-in Leakage Safety Interlock
Power supply
200--240 VAC, 50--60 Hz, Built-in Precision Voltage Stabilizer
Temp. & Humidity
Ambient Temperature -10--45°C, Relative Humidity 30%--90%, Built-in Industrial Air Conditioner
Weight
350kg
Material
304 Stainless Steel
Dust/Water Proofing
Whole Machine IP55, Inspection Tunnel IP66, Built-in Condensate Pipe
Technical Indicators (Sensitivity)
Metal Ball φ0.3mm; Metal Wire φ0.2 × 2 mm; Ceramic Ball φ0.8 mm
