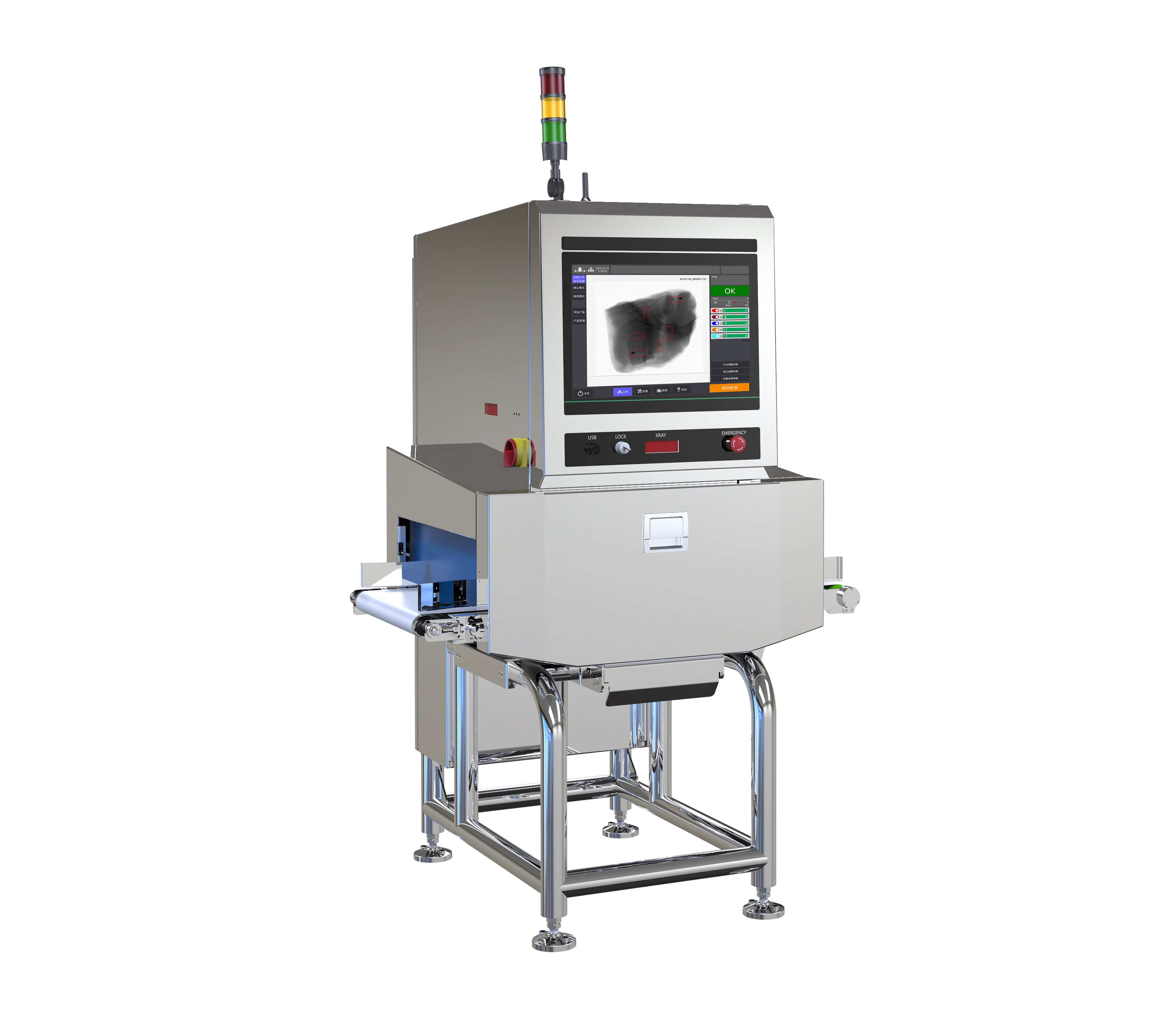

Desigco CLS-XRay-C6030 is a high-power, large-aperture X-ray system
Desigco CLS-XRay-C6030 is engineered for maximum throughput and performance in inspecting bulkier or larger packaged products.
With a spacious 600x300mm tunnel and a powerful optional X-ray source (up to 480W), it maintains high sensitivity even for dense products or larger package sizes, making it ideal for sectors like meat, poultry, dairy, and packaged goods.
Large Inspection Aperture: Accommodates larger and taller packages (up to 30kg), perfect for bulk items or case-ready products.
High Power & Penetration: Optional 480W generator ensures clear imaging and reliable detection in high-density or thick products.
Maximized Line Efficiency: Fast belt speeds (up to 60 m/min) support high-volume production lines without compromising on inspection quality.
Exceptional Sensitivity: Maintains the ability to detect tiny contaminants (e.g., φ0.3mm metal) even with its large tunnel size.
Industrial Reliability: Features a heavy-duty construction (350kg), built-in climate control, and high IP ratings for non-stop operation in tough conditions.
Comprehensive Safety: Includes full radiation shielding and safety interlock systems to ensure complete operator and environmental safety.
Model
CLS-XRay-C6030
Aperture Size
600×300mm
Conveyor Belt Speed
5-60 meters/minute
Conveyor Height
800±50mm
Product Flow Direction
From left to right
Max. Product Weight
30kg Max.
X-ray Power
350W / 480W (Optional)
X-ray Leakage
Less than 1 μSv/h
Detector Size
0.4mm High Sensitivity Receiver
Operating System
Linux
HMI(Human-Machine Int.)
17-inch Industrial Touch Screen
Software
Desigco X-Ray Inspection System
Radiation Protection
≤1μSv/h, Built-in Leakage Safety Interlock
Power supply
200--240 VAC, 50--60 Hz, Built-in Precision Voltage Stabilizer
Temp. & Humidity
Ambient Temperature -10--45°C, Relative Humidity 30%--90%, Built-in Industrial Air Conditioner
Weight
350kg
Material
304 Stainless Steel
Dust/Water Proofing
Whole Machine IP55, Inspection Tunnel IP66, Built-in Condensate Pipe
Technical Indicators (Sensitivity)
Metal Ball φ0.3mm; Metal Wire φ0.2 × 2 mm; Ceramic Ball φ0.7 mm
